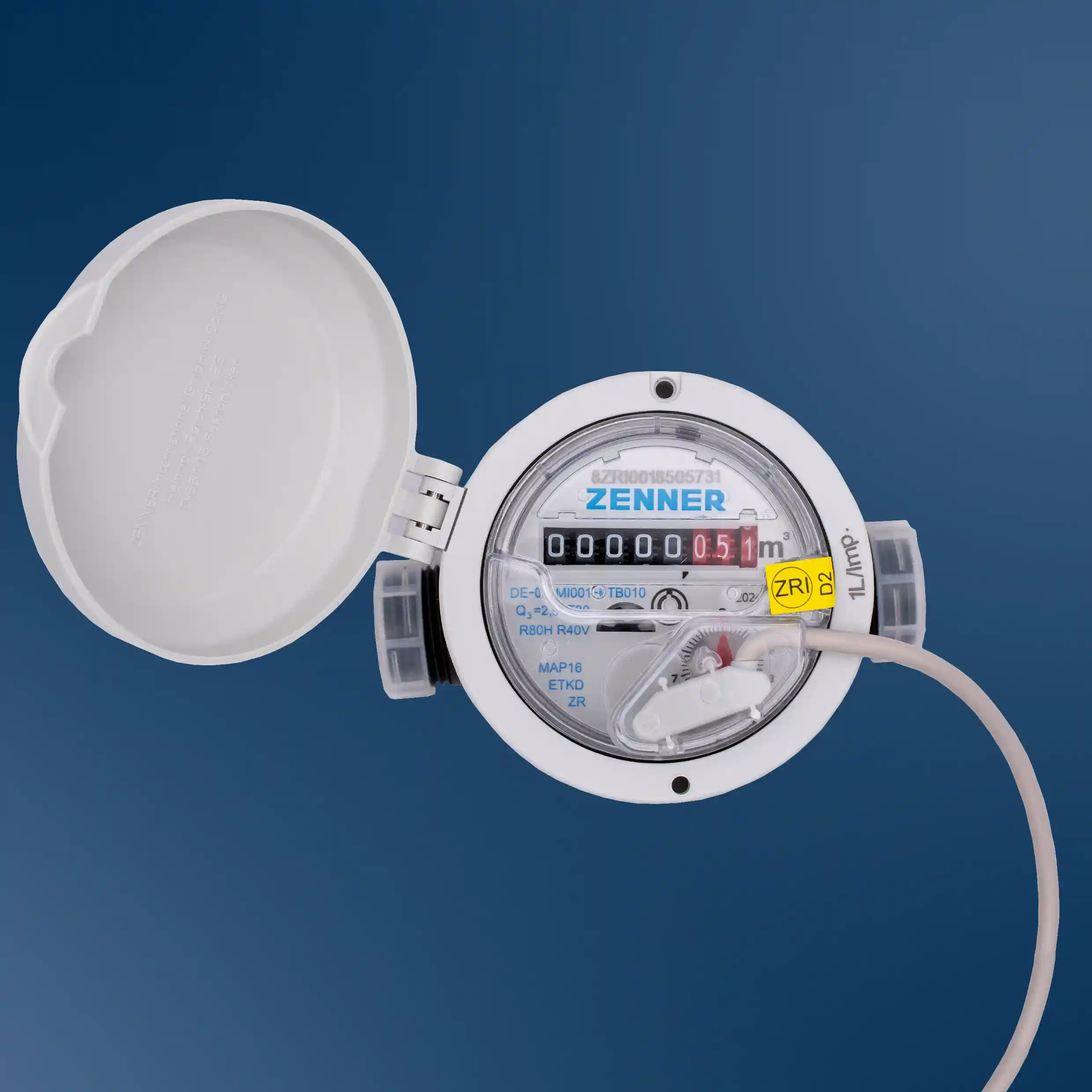

Monitoring water consumption makes it easy to detect leaks and excessive animal water use. The DOL 90 Water Meter accurately measures water flow and can be integrated into any cold-water system.
The DOL 90 is calibrated to deliver one pulse per liter and supports both accumulated and delta pulse counting. Its robust housing is made from composite polymer plastic and includes an integrated inlet filter for reliable operation.
Water flow can be read directly on the built-in mechanical counter or via an externally connected counter, controlled by a switch integrated into the DOL 90.
Inside the meter, a small impeller is positioned in the flow pipe and rotates with the passing water. The speed of rotation is directly proportional to the water volume over time. This movement is transferred through a gear system to the mechanical counting mechanism, while an electric switch is activated by a magnet mounted on the gear.
DOL 90 comes in a LoRa version for our Monitoring Solutions.
